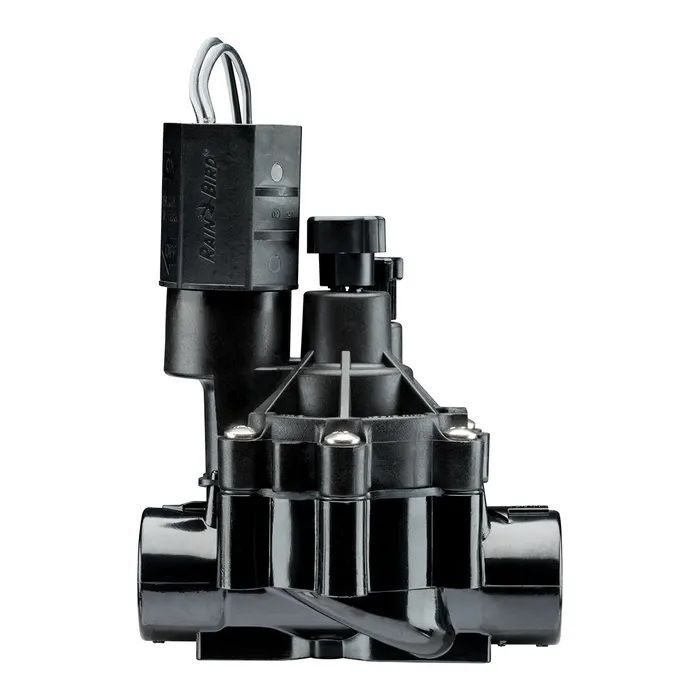

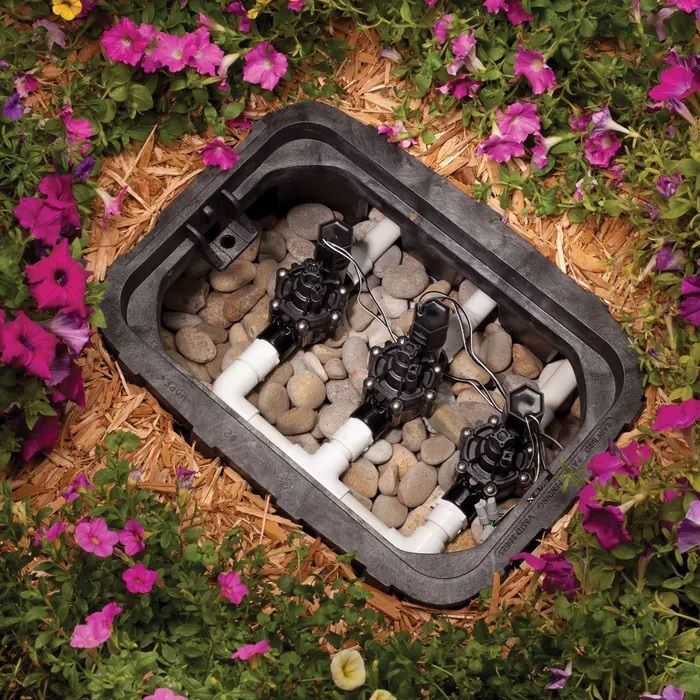

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 3/4 inch female threaded inlet and outlet.

It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high.

A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5) as well as Drip zones when properly installed together with a pressure regulator and filter.

Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.

Use The Manual External Bleed Screw To Flush Dirt And Debris.
Can Operate Electrically With Any 24 Volt Timer Or Manually By Turning.
The Solenoid 1/4 Turn Counter-Clockwise.
Proven Reliability with Heavy Duty Construction For Long Lasting Operation.
Used in Residential and Light Commercial Applications.

Specifications

Flow Control	Yes
Valve Type	Inline
Material	Plastic
Valve Inlet/Outlet Configuration	NPT Female x NPT Female Threaded
Minimum Water and Ambient Air Temperature	40° F (4° C)
Water temperature	Up to 110° F (43° C)

Ambient temperature	Up to 125° F (52° C)
Solenoid	24 VAC 50/60 Hz
Inrush	.30 amp
Holding	.19 amp
Flow Range	0.2 to 22 gpm (For flows below 3 GPM or drip line applications install a 200 mesh filter before the valve)
Operating Pressure	15 to 150 PSI
